MODCANN WI+

Overview

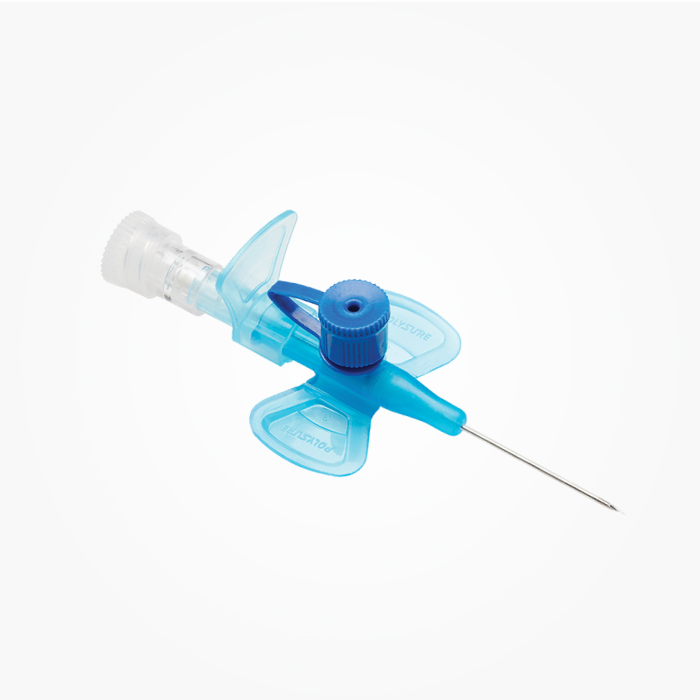

I V Cannula with wings and injection port


Product Name : Modcann WI+

Sizes : 14G to 26G

Product Code : 1001


For infusion of intravenous fluids and medicines.

Product Features

Ultra Sharp Back Cut Needle:-

  • Siliconised, stainless steel, ultra sharp, back cut, Japanese needle facilitates pain free insertion inside a vein to provide venous access.
  • The back-cut incision creates a highly flexible pathway designed to give you easier insertion with less tissue tearing and faster healing.

Catheter Material:-

  • Smoother inner and outer surface, and tapered tip of the catheter ensures friction less insertion.
  • FEP Radiopaque three stripped catheter assures excellent visibility under X-rays.
  • Biocompatible material is used for longer indwelling time.
  • Also available in Polyurethane (PUR) for more kink resistance and comfortable performance.
  • Latex-free, PVC-free.

Flexible Wide Wings:-

  • Specially designed flexible, wide and soft wings for easy and proper fixation.
  • Translucent material makes it easy to see through.
  • Material used: Polypropylene.

Ultra Transparent Flash Back Chamber:-

  • Ultra transparent flash back chamber to observe quick flashback during venipuncture.
  • Hydrophobic filter facilitates proper venting for quick flash back.
  • Material used: Polycarbonate for easy visualization.

Injection Port:-

  • Injection port with imported non return white Silicon valve and colour coded cap for extra medication without interrupting infusion.

ETO Sterilized , Single Use and Non Pyrogenic.

Options Available

PUR Catheter.

Technical Specifications
Size Color Catheter O.D.
(mm)
Catheter Length
(mm)
Water Flow Rate
(ml/min)
14G Orange 2.1 45 270
16G Grey 1.7 45 180
18G Green 1.3 45 80
20G Pink 1.1 32 54
22G Blue 0.9 25 33
24G Yellow 0.7 19 19
26G Violet 0.6 19 15
