Overview

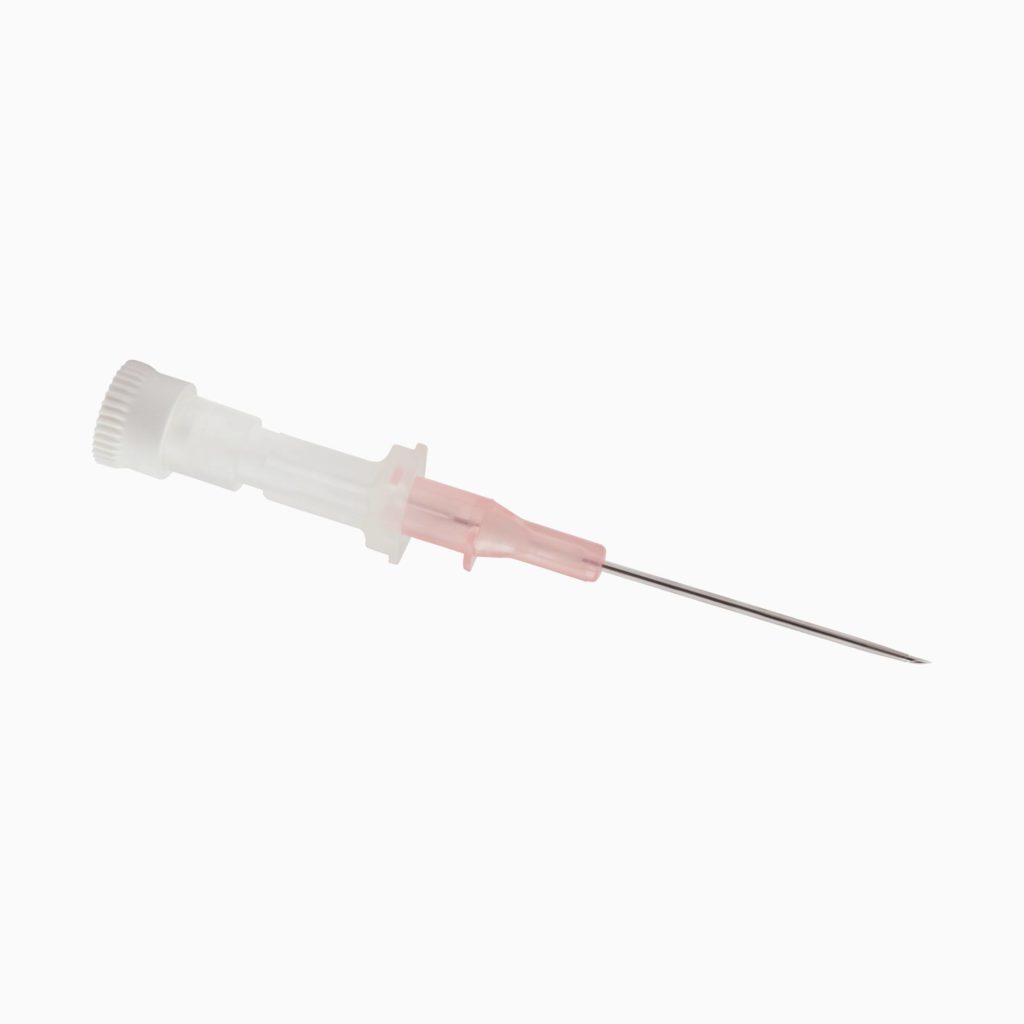

I V Cannula without wings and without injection port
Product Name : Ecowin
Sizes : 14G to 26G
Product Code : 1005
For infusion of intravenous fluids and medicines.
Product Features
- Siliconised stainless steel, ultra sharp, back cut Japanese needle for pain free insertion.
- FEP Radiopaque three striped catheter with smoother inner and outer surface and tapered tip to ensure friction less insertion.
- Transparent flash back chamber to check instant venipuncture.
- Bio-compatible material used for longer indwelling time.
- Latex-free, PVC-free.
- ETO Sterilized , Single Use and Non Pyrogenic.
Options Available
PUR Catheter.
| Technical Specifications | |||||
| Size | Color | Catheter O.D. (mm) |
Catheter Length (mm) |
Water Flow Rate (ml/min) |
|
|---|---|---|---|---|---|
| 14G | Orange | 2.1 | 45 | 270 | |
| 16G | Grey | 1.7 | 45 | 180 | |
| 18G | Green | 1.3 | 45 | 80 | |
| 20G | Pink | 1.1 | 32 | 54 | |
| 22G | Blue | 0.9 | 25 | 33 | |
| 24G | Yellow | 0.7 | 19 | 19 | |
| 26G | Violet | 0.6 | 19 | 15 | |
